Hybrid Vision Systems
Product measurement, appearance, and alignment Inspection solutions that maximize the performance of rule-based vision
TWIM's hybrid vision system, which maximizes the performance of rule-based vision, guarantees optimization of product measurement, appearance, and alignment. Furthermore, we propose system efficiency for your company through optical design according to the environment of the process.

We suggest you to introduce TWIM's hybrid vision system, which has already been validated in many business areas and projects.

Rational and accurate machine vision Automatic Optical Inspection System (AOI)

Overview

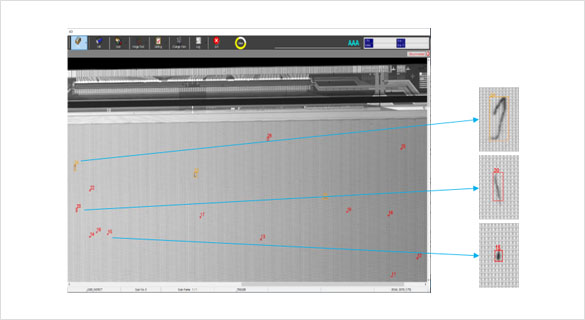

This is an inspection system for alien substance inspection such as particles, scratches, bubbles, etc. on display OLED film and PCB appearance inspection.
Need more information or consulting? Contact us!
Sales Team in TWIM Corp.
Features
  • Applicable to various fields such as SMT, semiconductor, LED, PCB, automotive electronics, etc.
  • Compatible with both inline/offline methods
  • High resolution inspection of at least 5 μm
  • 5000mm zone line-scan inspection
  • Ultra-high-speed image processing CUDA, SIMD applied
  • User-friendly setup configuration
Inspection Process

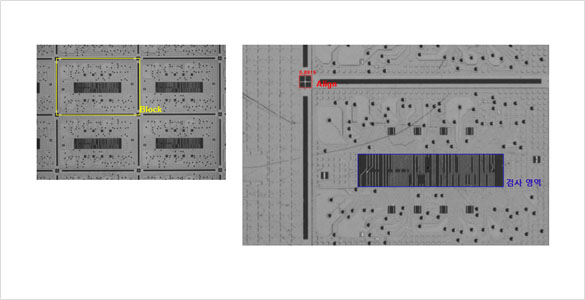

1. Extract inspection area after alignment inspection from each block

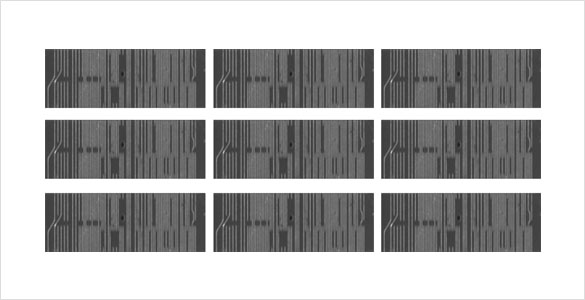

2. Compare patterns by inspection area

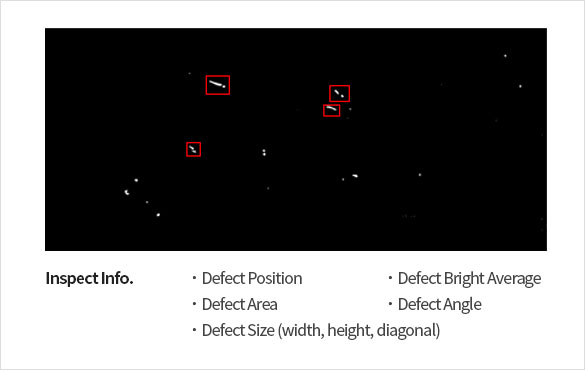

3. Extract defect in size that meets the conditions

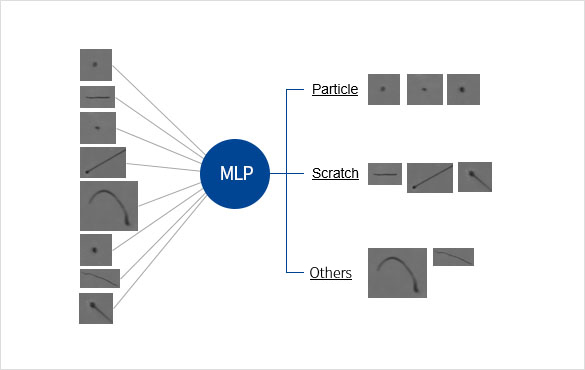

4. Classify and judge defects
Introduction Effects
  • Improve worker response to automation to increase facility availability
  • Possible to track and improve previous process defects through input end inspection
  • Defective products can be detected in advance by introducing an inspection system for each product production process
Applicable Cases
  • Company S's domestic, China (Tianjin, Dongguan), Vietnam, and India Process: Adhesion accuracy measurement and inspection machine of the attacher equipment group
  • Company C: Panel Front AOI Inspector: Alien substance, bubble, scratch, crack, etc.
  • Company B: Panel Front AOI Inspector: Alien substance, bubble, scratch, crack, etc.
  • Droplet Inspection: Over-coated, uncoated, alien substance, etc.
  • Compression Inspection: PCB conductive ball 2.5D inspection
Applications
  • Display OLED, PCB, etc.
