AI Deep-learning Inspection Equipment, T-MEGA
AI Deep-learning Inspection Equipment, T-MEGA
AI Deep-learning Inspection Equipment, T-MEGA
An integrated quality inspection solution that quickly and accurately detects fine defects in the entire process
With existing rule-based vision inspection or visual inspection, irregular and unstructured product and defect inspection are difficult.
Also, even if the inspector is introduced, inspection personnel are still needed if it does not fit the process environment.
Above all, the effect can be experienced only when the inspection product and the inspection machine are introduced that is suitable for the production process.
T-MEGA, the AI inspector of TWIM, was developed to solve the above problem at once.
It is an integrated quality inspection solution that quickly and accurately detects fine defects in the entire process, including input, emission, bonding, assembly, inspection, packaging, and logistics, with high-resolution optical equipment, a customized inspection system and AI vision inspection software MOAI developed by TWIM.
In addition, it integrates and manages all processes from manufacturing to shipping.
T-MEGA, the AI inspector of TWIM, was developed to solve the above problem at once.
It is an integrated quality inspection solution that quickly and accurately detects fine defects in the entire process, including input, emission, bonding, assembly, inspection, packaging, and logistics, with high-resolution optical equipment, a customized inspection system and AI vision inspection software MOAI developed by TWIM.
In addition, it integrates and manages all processes from manufacturing to shipping.
AI Secondary Battery Inspector
Overview
Considering the environment, demand for secondary batteries is increasing not only in automobiles but also in electronics, healthcare, telecommunications, marine and power industries.
Already, TWIM has collaborated with the world's best secondary battery technology to measure cells, separators, exterior, weld zone, etc., and conduct inspections of appearance, bead width, pinhole, etc.
T-MEGA is also ahead of the secondary battery inspection.
Need more information or consulting? Contact us!
Sales Team in TWIM Corp.
- Inspection Area: Secondary battery
- Target of Inspection: Cells, separator, exterior, weld zone, etc.
- Type of Inspection: Measurement, appearance, bead width, pinhole, etc.
Features
- Deep learning inspection with MOAI4.0
- 2D, 3D, X-ray inspection with deep learning available
- Models can be changed by product type
- Applicable to customer requirements (inspection items, inspection level, inspection speed, etc.)
- Lighting uniformity can be achieved for metal and film areas
- Changeable to PC-based VISION system for Smart Vision specifications

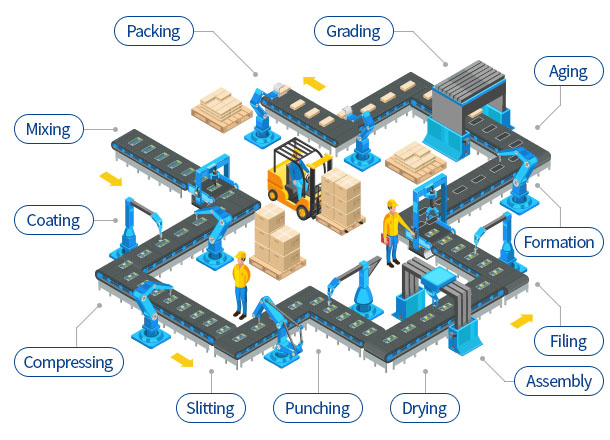

Inspection Configuration
- possible to apply the whole secondary cell manufactory process such as electrode process, assembly process, formation process, the grading process, and packing process with Vision System and Inspection System.
Introduction Effects
- Reduced investment cost compared to the STAND ALONE VISION system
- Integrated management compared to the STAND ALONE VISION system
- Excellent inspection performance compared to the STAND ALONE VISION system (customizable)
- Secure quality standards through accurate size measurement
- Weld bead inspection using deep learning
Applicable Cases
- Company H: SG2 MBA Line VISON
- Company S: BM210 Production Quality Line VISON
- Company S: Assembly line, module line, welding inspector, VNT inspector
- Company L: Separator inspector
Applications
- Vision Inspection System for weld bead
- Vision Inspection System for separation Membrane process
- Vision Inspection System for assembly process
- Vision Inspection System for charge and discharge process
- Vision Inspection System for case process
- Vision Inspection System for film Process
